Pivoting during operational disruption

Operational Disruption Business continuity is only as good as the procedural and strategic implementation set prior to the impending disruption, regardless of the severity. Either that, or the ability of the company to respond and adapt quickly and efficiently.

Across the board, we are seeing businesses and industries alike pivoting and responding to the global crisis that continues to sweep across humanity. The question then becomes, how can we pivot and systematically implement solutions that not only allow for business scalability but one that offers relief aid and immediate assistance to humanity?

We have since seen the manufacturing industry repurpose production immediately to offer materials and supplies to essential businesses being impacted. This seems like an obvious answer during times of global pandemics. What’s less obvious though, is the shift in the engineering and construction sector. Let us dive a bit deeper into the potential solutions and production shifts that we at McNeil Engineering can make to restructure service offerings and offer an immediate benefit to essential workers during this time.

The pandemic impact

While the obvious effects of COVID-19 are felt around the world, fortunately, up until now, the construction and engineering sector have been deemed as essential to continue building and strengthening infrastructural resilience.

The economy has slowed down, but thankfully not completely liquidated. Depending on the length of this impactful disruption will directly relate to the cash flow and pipeline projects of engineering and construction businesses.

The potential long-term impact will be to face a decrease in overall demand on every level. Maintaining safety, internal restructuring, and supply chain optimization will be massively relevant questions to answer in order to remain sustainable and scalable in the future.

The pandemic is nothing, if not uncertain, but the solutions come from proactive adaptation and systematic approaches. McNeil Engineering takes pride in our evolutionary thought process and will continue to do everything we can to assist and repurpose workflow to better suite the great good during these unprecedented times.

How to adapt

Companies, industries, and brands alike will inevitably be defined for some time based on what they did during the crisis in order to innovatively alter the course of not only their personal direction, but the direction on a pandemic scale. How did they treat humanity? That will be the question asked and observed post crisis.

The way we see it, there are a multitude of initiatives that the engineering and landscape architecture industry can take to thrive during uncertainty with or without a continuity plan in place. We want to consider how we can use this time to rethink and restructure work through possible digital adoptions and software advancements.

What do these next steps look like?

Possible delays and project cancellations are inevitable, but how a company pivots production is essential to operational optimization. What do these pivots look like?

Disruption management and crisis response: working closely with municipalities and local governments to assist with emergency considerations pending a county wide shut down.
Operational Workflow: Ensuring that employees and a business’s entire workforce is safe and taken care of during these major shifts is essential to business continuation and functionality.
Supply chain disruptions: We are all aware by now of the transportation, shipment, and sourcing issues prevalent within most all supply chains today. Increasing visibility and responsive engagement will inevitably alleviate pressure on certain suppliers or may even offer alternative suppliers to be contacted and used for product procurement.
Collaboration: The key to long-term success based on current issues will be a company’s ability to collaborate and coordinate with public sectors to develop plans for continued growth implementation.

Business will always be faced with issues that could alter the course of strategy at any given time. The way they individually respond to these issues are what will set them up for future success and continued scalability. McNeil Engineering has always been more than an engineering business. We value humanity and offer our services as more than construction development.

If you are an essential business or local government in need of any of our services, we are here to help. We have the knowledgeable staff necessary for progressive integration and adaptive implementations needed to bridge the infrastructure gap so widespread in our world today. Our experience with 3D printing can aid in personal protective equipment development as the demand for masks and face shields continue to rise daily. Leveraging current techniques to assist in this crisis is important to us as our outreach is extended well past our local community.

Joining together will make us all stronger in the end. If you have any questions or would like to speak with us today, please reach out to one of our team members HERE.

McNeil Engineering’s Very Own Hero

Mike Hoffman McNeil “TEAM – We understand that while our industry is changing, our success and the success of [others] still depends on building strong relationships and working as a cohesive team towards a common goal.”

And today, we aren’t talking about structural engineering projects or consultations. Today, we want to talk about the greater good and progressive evolution of humanity – without sounding too philosophical, or course!

We hear the term work/life balance nonchalantly thrown about on business podcasts and around the water cooler at work. But what exactly does it mean? Is it more time with your family? More time to travel? More time to binge on Netflix originals?

Or is it something more?

Michael Hoffman, McNeil Engineering’s very own Survey Manager, chooses to believe that balancing your work and life goes much deeper than that. He takes leadership seriously and extends his reach to depths most of us are unaware of.

This is what true leadership is. Asking how you can be of service to others. Lifting others in their time of need. Leading by example. It isn’t very often you get to read about particular service offerings that transcend the industrial work place and make a difference in the lives of others, but today we are doing just that.

A Hospice Hero is awarded

Today we get to shine a light on Michael and brag on him a bit. He deserves it! Michael consistently makes a proactive effort to visit hospice patients during his lunch break at least once, sometime twice each week. He’s been sticking to this service-driven leadership for over a year now.

And he doesn’t stop there. As a matter of fact, last Christmas, the McNeil Engineering team had the privilege of working directly with the Boy Scouts of America to assist them with receiving their surveying merit badge, an experience we know we will never forget, and we’re sure they won’t either.

One thing we want the community to know is that we are more than engineers. Michael is the perfect example of that. Michael received the Hospice Hero Award back in early December 2019. The Hospice Hero Award is a program honoring hospice volunteers and professionals across the nation, highlighting their dedication to a selfless commitment to others. We are so proud of Michael!

To us, success means providing an unmatched value through commitment and individualized service to our community. When a business is known for their industry expertise and even more so for their commitment to giving back, we call that progressive scalability and adaptive evolution – on a human level.

We want to thank Michael for his consistent commitment to others. We absolutely could not experience any form of success without employees like Michael and the continued support of our beloved community.

We would like to take this time to highlight our team and their contact information. If there is any way we can assist you, please let us know. We truly love our community.

Management Contacts:

Ted Didas, P.E., President / CEO – Civil Engineering Manager | 801.255.7700 x114 | ted@mcneileng.com
Matt Roblez, SE, SECB, Principal – Structural Engineering Manager | 801.255.7700 x128 | matt@mcneileng.com
Mike Hoffman, PLS, Principal – Survey Manager | 801.255.7700 x138 | mike@mcneileng.com
Scott Schoonover, PLA, ASLA, Principal – Landscape Architect | 801.255.7700 x152 | scotts@mcneileng.com
Carl Greene, Principal – Consulting Manager | 801.255.7700 x118 | carl@mcneileng.com

Civil Engineering Contacts:

Ted Didas, P.E., President / CEO -Civil Engineering Manager | 801.255.7700 x114 | ted@mcneileng.com
Rob Poirier, P.E., Civil Engineering Project Manager | 801.255.7700 x117 | rob@mcneileng.com
Daniel Canning, P.E., Design Engineer
Jake Felshaw, Senior Civil Designer
Cody Williams, Staff Engineer

Structural Engineering Contacts:

Matt Roblez, SE, SECB, Principal – Structural Engineering Manager | 801.255.7700 x128 | matt@mcneileng.com
Brian Warner, S.E., LEED AP, Senior Structural Engineer | 801.255.7700 x111 | brian@mcneileng.com
Anthony Schmid, S.E., Senior Structural Engineer | 435.632.7660 | anthony@mcneileng.com
Cody Palmer, P.E., Professional Engineer | 435.213.3660 | cody@mcneileng.com
Rebeca Rendon-Lira, Project Coordinator
Tevi Lawson-Avla, Staff Engineer
Walter Travis IV, P.E., Professional Engineer
Layton Asmus, Staff Engineer
Greg Ostermiller, Structural E.I.T.
Shey Bailey, Structural Drafter

The ultimate work/life balance comes from enjoying both aspects equally. If you have any questions on the work we do in and around our community, or if you have any upcoming projects you would like to discuss with us, please feel free to reach out to us today.

Laser scanning for oil

Utah Laser scanning for oil At McNeil Engineering, we’ve been using LIDAR laser scanning as a tool for civil engineering, structural engineering, surveying and building modeling for years. One of the most interesting uses was scanning the Book Cliffs in eastern Utah in a project to research how laser scanning can help find mineral deposits that could indicate the presence of oil shale deposits. It could lead to a breakthrough in prospecting for energy resources.

The ground to scan

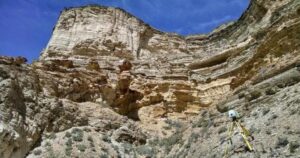

The Book Cliffs are mountainous formations located in eastern Utah and western Colorado, so named because of the top cap on south-facing buttes, made of Cretaceous-era sandstone, which resemble a shelf of books.

The Book Cliffs begin where the Colorado River leaves the De Beque Canyon into the Grand Valley. The cliffs run mostly along the southern and western edge of the Tavaputs Plateau.

They are one of the best places in the world for studying sequence stratigraphy, which is the study of layers of sedimentary rock deposits and the way they represent various geologic processes over long periods of time.

The Book Cliffs show that the area was at one time part of the Western Interior Seaway that extended from the present Gulf of Mexico to the Yukon Territory, from 145 to 66 million years ago. Later, during the Eocene Era of 55 to 33 million years ago, the Green River Basin enjoyed warm temperatures and abundant rainfall.

In 2005, the oil shale was discovered in the Green River Formation, now estimated to contain from 500 billion to 1.1 trillion barrels of potentially recoverable oil.

The question

Certain minerals, called mineral lenses, are often indicators of the presence of oil shale deposits, and thus pointers to valuable extractable energy resources. So a fast, cheap and non-damaging method of finding them would be a major benefit to the energy industry. At the same time, avoiding digging or drilling that does not find extractable resources would be a boon for the natural environment.

Professor Paul Jewell of the University of Utah’s Department of Geology and Geophysics specializes in studying hydrologic principles — that is, how water moves over surfaces — to understanding geochemistry and sedimentation. He has used LIDAR and other mapping technologies to create sophisticated models of surface environments in the western United States, such as Lake Bonneville, the ancient lake that covered much of present-day Utah, Idaho and Nevada after the last ice age.

One question he wanted to answer was: Can LIDAR scanning be used to find the minerals in the exposed cliff faces?

We at McNeil Engineering were happy to team up, and extend our knowledge and expertise in using LIDAR scanning and digital mapping.

The technology

LIDAR, or light detection and ranging, is also known as 3D laser scanning. It’s a combination of the concepts of laser scanning and radar.

The technology reflects a beam of laser light off a surface. Computers measure the difference in return times and wavelengths to produce a three-dimensional model of a surface.

Our laser surveying systems capture millions of measurements in a few minutes, resulting in highly detailed, rich models that we can study. They’re far more precise than the models produced by traditional surveying methods.

The prize

Over the years, prospectors have found a number of key indicators for the presence of buried resources, including oil and other fossil fuels. Fossil fuels are found in sedimentary rock. These are formed by small mineral particles deposited by running water. Over time, with pressure, they fuse together. These rocks are porous, and the spaces are filled with carbon-based, organic matter which, over time, decays into oil or gas.

Running water, such as the Green River, deposits a range of materials when it flows into a larger, more still body such as a lake. The presence of certain minerals in layers of sedimentary rock could indicate an ancient body of water, and hit at the possibility of oil or oil shale trapped in the layers.

Not to be confused with shale oil (oil produced by fracking), oil shale is a fine-grained sedimentary rock that can contain significant amounts of organic material called kerogen. When heated to high temperatures, kerogen can be converted into usable oil.

The experiment

McNeil Engineering’s 3D laser scanning team accompanies Professor Jewell to the Book Cliffs. We used our laser scanning system to record literally millions of data points along the faces of the cliffs, then build digital models.

The models we generated allowed the team, as well as specialists from the University of Utah, to identify places where the mineral markers could indicate the presence of oil shale buried within the rock structures.

This information allows the geological team to narrow down the most likely places to investigate for resources.
